PASSENGER ELEVATOR

Syney Elevator brings you safety, stability, high efficiency and comfort, at the same time, it brings you the quality and enjoyment of life. Complete specifications, nicely decorated passenger elevator will meet different needs of all users.

PASSENGER ELEVATOR

Artistic presentation

Perfect overlap of machine room area and shaft area

The usage of compact gearless permanent magnet synchronous traction machine and the single-sided control cabinet reduces the area of the machine room to 1/2 of the traditional machine room. The machine room seamlessly connects and perfectly overlaps with the shaft, forming a smooth elevator channel, with both space saving and aesthetic feeling.

LEADING SUPERIORITY

Saving 50% machine room area

User-friendly design

Nice-looking lift car

SAFETY FIRST

The 32-bit microcomputer control system adopts modular control of the full computer, featuring high integration, fast running speed and high control precision. The signal processing is independent from each other, effectively avoiding busy communication, frequent faults, etc.
The 32-bit microcomputer-controlled all-digital permanent magnet synchronous door operator uses large-density detection beam, and has electromagnetic compatibility and anti-interference ability to protect passengers’ safety.
The Network intelligent transmission system with more simplified wiring can maximally avoid the failure of a certain link from affecting the entire control system.

Safe and comfortable

Firmly insisting on the consistent safety concept of Syney, GERSN L1505 series adopts multiple advanced control technologies to ensure safe running of the elevator in all round and improve the user experience as well, striving to offer each passenger a safe and comfortable elevator space.

Comfortable experience

Load vibration control effectuates intelligent adjustment and compensation to flexibly adapt to different load capacities, and it cooperates with zero-speed lock control for position control to ensure smoother acceleration and deceleration of the elevator, more accurate alignment and more comfortable taking experience.

Machine-room-less design

Leaves more life space for people

The machine-room-less design enables a flexible installation of compact gearless permanent magnet synchronous traction machine and control cabinet in the shaft, greatly saving the building area and reducing the comprehensive cost, leaving more room for the design of developer and architect as well as more life space.

LEADING SUPERIORITY

Saving building space

Environmentally friendly

Respecting passenger experience

PROFESSIONAL LAYOUT, REDUCING THE MAINTENANCE DIFFICULTY IN ADVANCE

The single-sided design is specially applied to control cabinet, which is mounted next to the top landing door, at a minimum distance with the motor installed between the top lift car in the shaft and the shaft wall, for the sake of convenient follow-up inspection and maintenance.

ENERGY-SAVING TECHNOLOGY BASED ELEVATOR

Green drive

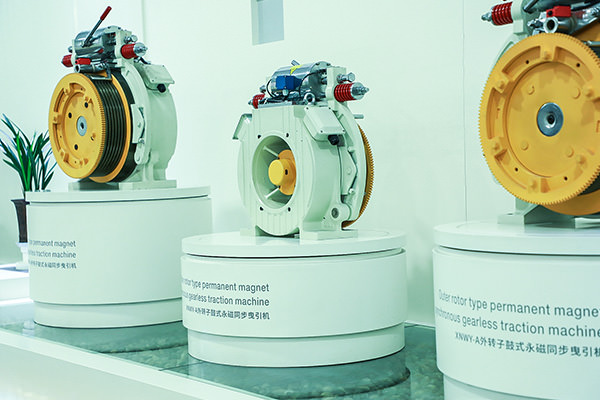

The traction machine adopts permanent magnet synchronous motor, effectively saving energy by 20%-30%. The gearless structure frees lubrication system and avoids the oil leakage of the motor for good.

Energy-saving transportation

Variable-frequency operation mode enables intelligent adjustment of exciting current according to the load condition of the motor, so as to minimize the stator current and reduce the copper loss of the motor, thus saving the energy.

Intelligent diversion

The group control management system effectuates efficient, dynamic and intelligent management and control of every 3 and more elevators, facilitates reasonable distribution of passenger flow, and reduces waiting and transportation time, thus achieving the maximum efficiency of elevator service.

Gearless passenger elevator with machine room（TKJ）

Capacity	Speed	Car size(mm)	Open size(mm)	Hoistway size(mm)	Machine room size(mm)	Pit depth s	Overhead height k	Travel height
(kg)	(m/s)	CWCDCH	OP*OPH	HW*HD	HW*HD	(mm)	(mm)	(m)
	1.0					1500	4500	50
630	1.5	140011502500	800*2100	2000*1800	200018002300	1600	4600	75
	1.75					1700	4700	90
	1.0					1500	4500	50
	1.5			2000*2100	200021002300	1600	4600	75
800	1.75	135014002500	800*2100			1700	4700	90
	2.0			2050*2100	205021002500	1900	5000	105
	2.5			2050*2100	205021002500	2100	5200	125
	1.0					1500	4500	50
	1.5			2200*2100	220021002300	1600	4600	75
1000	1.75	160014002500	900*2100			1700	4700	90
	2.0			2300*2100	230021002500	1900	5000	105
	2.5			2300*2100	230021002500	2100	5200	125
	1.0					1500	4500	50
	1.5			2400*2100	240021002300	1600	4600	75
1150	1.75	180014002500	1000*2100			1700	4700	90
	2.0			2500*2150	250021502500	1900	5000	105
	2.5			2500*2150	250021502500	2200	5200	125
	1.0					1500	4500	50
	1.5			2600*2200	260022002500	1600	4600	75
1350	1.75	200015002500	1100*2100			1700	4700	90
	2.0			2700*2250	2700-2250*2500	1900	5000	105
	2.5			2700*2250	2700-2250*2500	2200	5200	125
	1.0					1500	4600	50
	1.5			2600*2400	260024002500	1600	4700	75
1600	1.75	200017002500	1100*2100			1700	4800	90
	2.0			2700*2450	270024502500	1900	5100	105
	2.5			2700*2450	270024502500	2200	5300	125

Gearless passenger elevator without machine room（TKJW）

Capacity	Speed	Car size（mm）	Open size(mm)	Hoistway size(mm)	Pit depth s	Overhead height k	Travel height
(kg)	(m/s)	CWCDCH	OP*OPH	HW*HD	(mm)	(mm)	(m)
	1.0	115014002500	700*2100	2150*1850	1600	4500	50
630	1.5	1150.14*2500	700*2100	1950*2150	1700	4600	75
	1.75	115014002500	700*2100	1950*2150	1800	4700	90
	1.0	135014002500	800*2100	2350*1850	1600	4500	50
800	1.5	130014502500	800*2100	2100*2100	1700	4600	75
	1.75	130014502500	800*2100	2100*2100	1800	4700	90
	1.0	150015002500	900*2100	2500*1950	1600	4500	50
1000	1.5	150015002500	900*2100	2300*2150	1700	4600	75
	1.75	150015002500	900*2100	2300*2150	1800	4700	90
